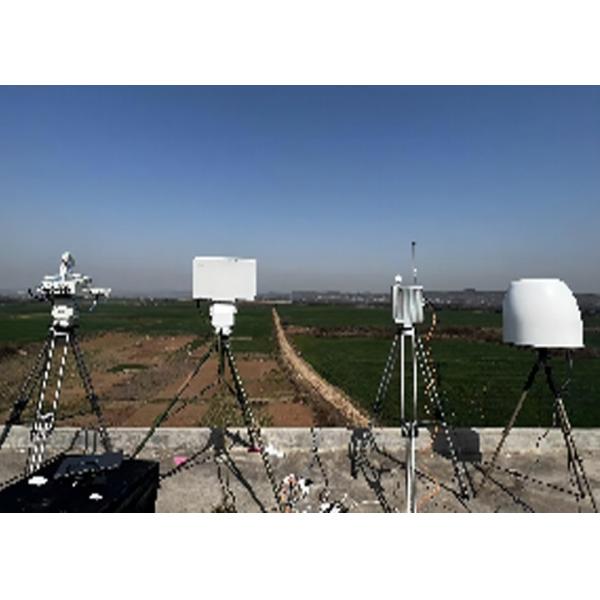

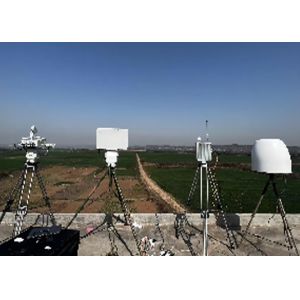

LT-Ku07A Low Altitude Warning Radar + LT-UDA Series UAV Positioning Countermeasures Integration Equipment (Optional)

Product Introduction:

The LT-Ku7A one-dimensional three-coordinate phased array radar is a low-altitude surveillance and reconnaissance equipment, operating in the Ku band. This radar adopts the AESA (Active Phased Array) system. In the elevation dimension, phase scanning is used for scanning, while in the azimuth dimension, mechanical scanning is used for scanning to achieve 360 ° azimuth coverage. The entire machine adopts a modular and solid-state design to ensure equipment reliability.

The UAV direction finding and positioning countermeasure equipment is an integrated system for UAV detection and warning, target recognition, direction finding, positioning, interference disposal, and control. It can be equipped with onboard components, fixed installation components, and temporary deployment components, making it flexible and suitable for multi-scenario applications.

Product Features:

1, Strong resistance to environmental clutter.
2, With a pitch adjustment device, can adjust the angle of the antenna, applicable to a variety of different geographical conditions.
3, Solves the technical difficulties of tracking and recognizing multi-targets in the background noisy environment.

4, Detection and positioning: Using passive and passive spectrum detection, the detection frequency is 20MHz-6GHz. Multiple array direction finding and positioning antennas are used to receive wireless signals from drones in the detection area. Using wireless protocol analysis technology, the system automatically detects and identifies the latitude and longitude coordinate information, altitude, speed, direction, and model of commonly used drones SN code, take-off point, and other information.

5, Interference disposal: Adopting high-speed digital frequency sweeping technology, through electromagnetic interference means to achieve the interference of UAV navigation, remote control, image transmission communication signals, so as to force the UAV to return to the flight or landing, and can achieve the precise interference to the designated UAV, but also can be configured with different antenna shapes according to application environments and requirements, to achieve the most economical and best performance to meet the requirements of the regional coverage.

6, Control platform: Based on SOA architecture, providing web pages with multiple access methods, such as applications, can enable access and management control of more than 20 sets of UAV detection and countermeasure devices, and support future expansion to other UAV countermeasure systems or devices, including radar, optoelectronics, deception, etc.
